Trusted & Recognized name in the Bolt End Caps and Stud Protectors, as well as Anchor Bolts Industry!
Al Barshaa Plastic Products Tr. Company L.L.C, located in UAE, is a leading manufacturer of high-quality Bolt End Caps and Stud Protectors, as well as Anchor Bolts. Our products are designed to protect the threads on bolts and anchor bolts, preventing damage and ensuring their longevity.
Our Bolt End Caps are made from durable plastic material and are available in a variety of sizes to fit bolts of different diameters. They protect the threads from dust, dirt, and other debris, while also preventing them from getting damaged during transportation and storage.
Our Stud Protectors are similarly designed to protect the threads of studs and prevent them from getting damaged or worn. They are easy to install and can be used in a variety of applications, from construction and manufacturing to automotive and marine industries. Our Anchor Bolts are made from high-quality materials and are designed for use in concrete applications. They provide a secure anchor point for a wide range of structures, including walls, foundations, and retaining walls.
At Al Barshaa Plastic Products Tr. Company L.L.C., we are committed to providing our customers with high-quality products and excellent customer service. Contact us today to learn more about our Bolt Caps, Stud Protectors, and Anchor Bolts, and to place an order.
HIGH-GRADE QUALITY PLASTIC PRODUCTS
Different Types Of Bolt End Caps and Stud Protectors, as well as Anchor Bolts
Bolt Cap Dimension & Specification
We are one of the best manufacturers of Bolt End Caps or Stud Protector which are used to protect the bolt from getting damaged while transporting, Low density polyethylene (LDPE) Push fit protecting bolt caps cover nuts and exposed screws, bolts and provide effective protection against damage and weathering and improve the finished appearance of your product. Easy to fit and remove.
Technical Specification For Bolt Caps
| Inch | A (mm) | H (mm) | T (mm) | C (mm) | Weight (Grm) | Material |
|---|---|---|---|---|---|---|
| 1/2 | 12.66 | 30 | 1.5 | 15.66 | 1.8 | LDPE |
| 5/8 | 15.83 | 30 | 1.5 | 18.83 | 2.46 | LDPE |
| 3/4 | 19.00 | 30 | 1.5 | 2.00 | 2.96 | LDPE |
| 7/8 | 22.18 | 30 | 1.5 | 25.18 | 3.7 | LDPE |
| 1 | 25.35 | 30 | 1.5 | 27.9 | 4.1 | LDPE |
| 1 1/8 | 28.52 | 30 | 1.5 | 31.52 | 5.07 | LDPE |
| 1 1/4 | 31.7 | 30 | 1.5 | 34.7 | 5.55 | LDPE |
| 1 3/8 | 34.87 | 30 | 1.5 | 37.87 | 5.46 | LDPE |
| 1 1/2 | 38.04 | 30 | 1.5 | 41.04 | 6.43 | LDPE |
| 1 5/8 | 41.22 | 30 | 1.5 | 44.22 | 6.60 | LDPE |
| 1 3/4 | 44.39 | 30 | 1.5 | 47.36 | 8.00 | LDPE |
| 1 7/8 | 47.57 | 30 | 1.5 | 50.57 | 7.20 | LDPE |
| 2 | 50.80 | 40 | 1.5 | 53.80 | 10.8 | LDPE |
| 2 1/2 | 63.44 | 40 | 1.5 | 66.44 | 16.54 | LDPE |
NOTE
Anchor Bolt Cap Dimension and Specification
This low-density polyethylene (LDPE) Push fit. protecting caps cover nuts and exposed screws, and bolts and provide effective protection against damage and weathering and improve the finished appearance of your product. Easy to fit and remove.
Technical Specification For Anchor Bolt Caps
| Size | H (mm) | A (mm) | B (mm) | Color | Weight | Material |
|---|---|---|---|---|---|---|
| M-10 | 60 | Ø 26 | Ø 19 | Black | 8.20 | LDPE |
| M-12 | 60 | Ø 28 | Ø 21 | Black | 8.95 | LDPE |
| M-16 | 60 | Ø 34 | Ø 26 | Black | 12.20 | LDPE |
| M-20 | 78 | Ø 42 | Ø 32.50 | Black | 19.10 | LDPE |
| M-24 | 78 | Ø 47.20 | Ø 38.70 | Black | 22.40 | LDPE |
| M-24 | 100 | Ø 47.20 | Ø 38.70 | Black | 31.00 | LDPE | M-27 | 90 | Ø 54 | Ø 45 | Black | 33.00 | LDPE | M-27 | 100 | Ø 54 | Ø 45 | Black | 38.00 | LDPE |
| M-30 | 90 | Ø 59.80 | Ø 50 | Black | 38.40 | LDPE |
| M-33 | 90 | Ø 64.20 | Ø 53.80 | Black | 45.70 | LDPE |
| M-33 | 130 | Ø 64.20 | Ø 53.80 | Black | 58.00 | LDPE |
| M-36 | 140 | Ø 78 | Ø 63.80 | Black | 33.28 | LDPE |
| M-39 | 80 | Ø 78 | Ø 68 | Black | 50.00 | LDPE |
| M-42 | 135 | Ø 86.60 | Ø 72.60 | Black | 84.00 | LDPE |
| M-45 | 120 | Ø 93.20 | Ø 76.95 | Black | 81.00 | LDPE |
NOTE
Key Product Features

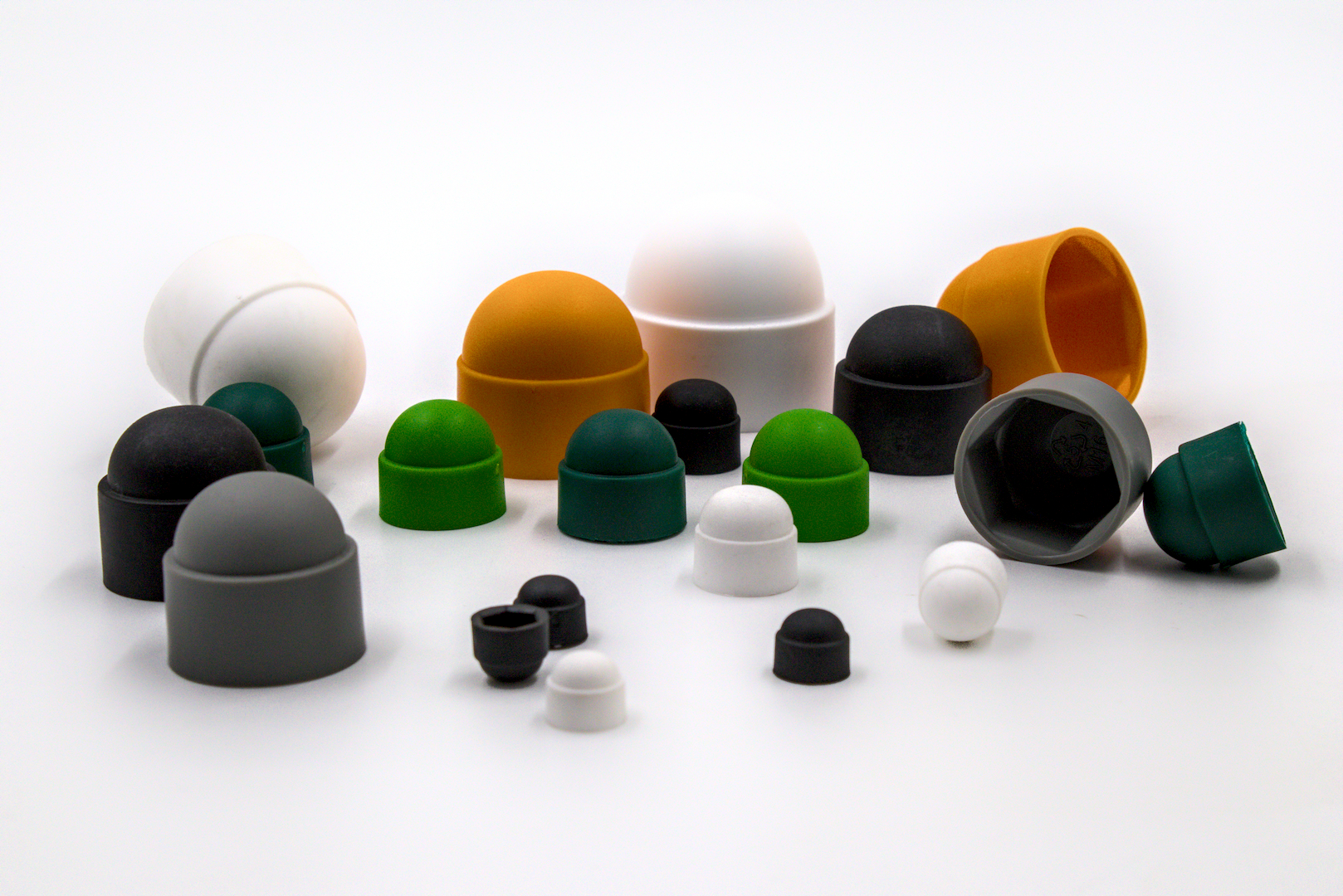

Image Collection: Hexagon Dome Bolt Caps
Technical Specification For Hexagon Dome Bolt Caps
| Size | H (mm) | B (mm) | A (mm) | Weight (Grams) | Color | Material |
|---|---|---|---|---|---|---|
| M5 | 9.60 | 8.00 | 11.60 | 0.39 | Black / White | Polypropylene |
| M6 | 14.00 | 10.00 | 14.00 | 0.65 | Black / White | Polypropylene |
| M8 | 15.6 | 13.00 | 17.30 | 1.08 | Black / White | Polypropylene |
| M10 | 20.3 | 17.00 | 22.60 | 2.22 | Black / White | Polypropylene |
| M12 | 21.6 | 19.00 | 25.00 | 2.90 | Black / White | Polypropylene |
| M16 | 28.4 | 24.00 | 30.50 | 4.55 | Black / White | Polypropylene |
| M20 | 34.8 | 29.80 | 37.00 | 7.60 | Black / White | Polypropylene |
| M24 | 43.00 | 36.00 | 45.40 | 13.90 | Black / White | Polypropylene |
